Advance technology to convert any surface into a touchpad using spray paint by CMU researchers
While touch sensing is common on small, flat surfaces such
as smartphone or tablet screens, researchers have now developed a
technology to turn surfaces of a wide variety of shapes and sizes into
touchpads using tools as simple as a can of spray paint. The technology,
called Electrick,
can turn walls, furniture, steering wheels and even toys into touch
sensors, the researchers said. The “trick” is to apply electrically
conductive coatings or materials to objects or surfaces, or to craft
objects using conductive materials.

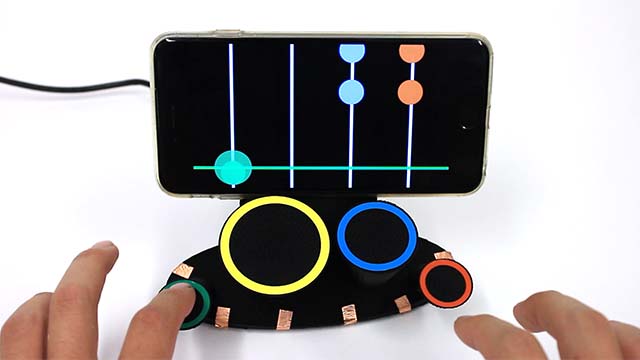

By attaching a series of electrodes to the conductive
materials, researchers showed they could use a well-known technique
called electric field tomography to sense the position of a finger
touch. “For the first time, we’ve been able to take a can of spray paint
and put a touch screen on almost anything,” said Chris Harrison,
Assistant professor in the Human-Computer Interaction Institute at Carnegie Mellon University in Pittsburgh, US.
The group is scheduled to present Electrick at CHI 2017, the Conference on Human Factors in Computing Systems, this week in Denver, Colorado. Until now, large touch surfaces have been expensive and irregularly shaped, or flexible touch surfaces have been largely available only in research labs. Some methods have relied on computer vision, which can be disrupted if a camera’s view of a surface is blocked. The presence of cameras also raises privacy concerns.
With Electrick, conductive touch surfaces can be created by applying conductive paints, bulk plastics or carbon-loaded films, among other materials. Like many touchscreens, Electrick relies on the shunting effect — when a finger touches the touchpad, it shunts a bit of electric current to ground. By attaching multiple electrodes to the periphery of an object or conductive coating, the researchers showed they could localise where and when such shunting occurs.
They did this by using electric field tomography —
sequentially running small amounts of current through the electrodes in
pairs and noting any voltage differences. The researchers used Electrick
to add touch sensing to objects as varied as a steering wheel and the
surface of a guitar, among others. The technology could be used to make
an interactive smartphone case — opening applications such as a camera
based on how the user holds the phone.
Via Tech2
